Introduction

     This is a guide on setting up Nutch 2 in an Eclipse project. You will then be able to hack the code and run tests, especially JUnit ones, pretty easily.

If you have Nutch branch or Gora trunk already checked-out, please run

$ svn up

in order to have its most up-to-date version. Multiple fixes show up in this document through diff outputs. In order to apply the fix, place the diff content into the root directory and run the patch command

$ patch -p0 < myDiff

Setup the projects in Eclipse

     The idea is to be able to improve Nutch and Gora code comfortably, with the help of the Eclipse IDE. You want to add in the Java Build Path the source - and why not the test - directories of the modules you are interested in working on. Then manage the dependencies with Ivy or Maven plugins to resolve the external libraries. Then update the code. Optionally run a few JUnit tests. Then run the ant task that builds the project. Then submit a patch. This is the easiest and the fastest way, especially as regards productivity.

Install plugins

Install the Subclipse, IvyDE and m2e plugins if you don't have them yet.

Help > Install New Software ...

Add the following urls:

http://subclipse.tigris.org/update_1.6.x

http://www.apache.org/dist/ant/ivyde/updatesite

http://m2eclipse.sonatype.org/sites/m2e

Check out SVN directories

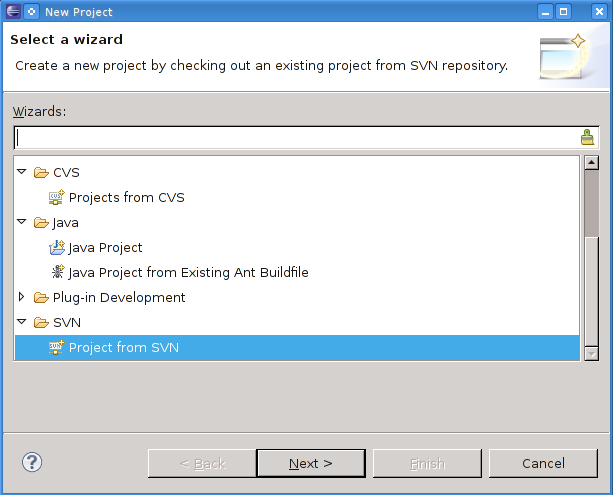

Check-out Nutch branch and Gora trunk versions using the SVN wizard, with the following urls

http://svn.apache.org/repos/asf/nutch/branches/nutchgora

http://svn.apache.org/repos/asf/incubator/gora/trunk

File > New > Project ...

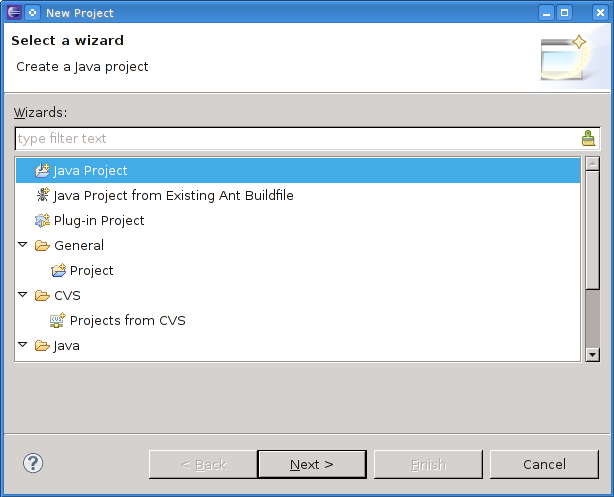

Note that you can just create a Java project and check out Nutch source with svn command, if you don't like SVN Eclipse plugin:

$ cd ~/java/workspace/NutchGora
$ svn co http://svn.apache.org/repos/asf/nutch/branches/nutchgora branch

Build the projects

Window > Show View > Ant

Drag and drop the build.xml files in the Ant Eclipse tab.

Just double click on the Gora and Nutch items in the Ant view. That will run the default task. For Gora, it will publish the modules to the Ivy local repository. For Nutch, it will build a "release" in runtime/local directory

Nutch

Within the Nutch project, we want to manage the dependencies with the Ivy plugin, not the Maven one.

• The call to "nutch.root" property set in build.xml for ant should be replaced in src/plugin/protocol-sftp/ivy.xml by the built-in "basedir" ivy property. I am not sure how to load a property in Eclipse Ivy plugin. This will break the build, so be sure to replace it back when running Ant tasks.

This is the Ivy configuration tweaks:

Index: src/plugin/protocol-sftp/ivy.xml
===================================================================
--- src/plugin/protocol-sftp/ivy.xml    (revision 1177967)
+++ src/plugin/protocol-sftp/ivy.xml    (working copy)
@@ -27,7 +27,7 @@
   </info>

   <configurations>
-    <include file="${nutch.root}/ivy/ivy-configurations.xml"/>
+    <include file="${basedir}/branch/ivy/ivy-configurations.xml"/>
   </configurations>

   <publications>
Index: ivy/ivy.xml
===================================================================
--- ivy/ivy.xml (revision 1177967)
+++ ivy/ivy.xml (working copy)
@@ -21,7 +21,7 @@
        </info>

        <configurations>
-               <include file="${basedir}/ivy/ivy-configurations.xml" />
+               <include file="${basedir}/branch/ivy/ivy-configurations.xml" />
        </configurations>

        <publications>
@@ -58,8 +58,9 @@
                  <dependency org="org.apache.tika" name="tika-parsers" rev="0.9" />
                -->

+               <!--
                <dependency org="org.apache.gora" name="gora-core" rev="0.1.1-incubating" conf="*->compile"/>
-
+-->
                <dependency org="log4j" name="log4j" rev="1.2.15" conf="*->master" />

                <dependency org="xerces" name="xercesImpl" rev="2.9.1" />

Now, right click on ivy/ivy.xml, "Add Ivy Library ...". Do the same for src/plugin/protocol-sftp/ivy.xml.

Remove the default src directory as a Source entry in the Java Build Path if it exists. Add at least the "java", "test" and "resources" source files (which are src/java, src/test and conf) so that they get included in the classpath. That will allow us to run the classes or tests later from Eclipse.

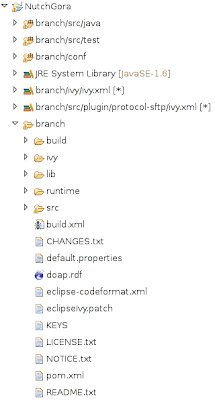

This is how the project tree looks like:

Datastores

The datastore holds the information Nutch crawls from the web. You can opt for a Relational DataBase System or a column-oriented, NoSQL store. Thanks to Gora interface, you can use any backend you might be familiar with: HSQL, MySQL, HBase, Cassandra ...

HSQL

This is the default Gora backend. Make sure your Ivy configuration contains the dependency:

<dependency org="org.hsqldb" name="hsqldb" rev="2.0.0" conf="*->default"/>

This is the content of conf/gora.properties:

gora.sqlstore.jdbc.driver=org.hsqldb.jdbcDriver
gora.sqlstore.jdbc.url=jdbc:hsqldb:hsql://localhost/nutchtest
gora.sqlstore.jdbc.user=sa
gora.sqlstore.jdbc.password=

Setup HSQL. I downloaded this version: HSQLDB 2.0.0. Finally starts HSQL server with the same database alias, called "nutchtest":

~/java/ext/hsqldb-2.0.0/hsqldb/data$ java -cp ../lib/hsqldb.jar org.hsqldb.server.Server --database.0 file:crawldb --dbname.0 nutchtest
[Server@12ac982]: [Thread[main,5,main]]: checkRunning(false) entered
[Server@12ac982]: [Thread[main,5,main]]: checkRunning(false) exited
[Server@12ac982]: Startup sequence initiated from main() method
[Server@12ac982]: Loaded properties from [/home/alex/java/ext/hsqldb-2.0.0/hsqldb/data/server.properties]
[Server@12ac982]: Initiating startup sequence...
[Server@12ac982]: Server socket opened successfully in 5 ms.
[Server@12ac982]: Database [index=0, id=0, db=file:crawldb, alias=nutchtest] opened sucessfully in 420 ms.
[Server@12ac982]: Startup sequence completed in 426 ms.
[Server@12ac982]: 2011-01-12 10:41:56.181 HSQLDB server 2.0.0 is online on port 9001
[Server@12ac982]: To close normally, connect and execute SHUTDOWN SQL
[Server@12ac982]: From command line, use [Ctrl]+[C] to abort abruptly

MySQL

To use MySQL as datastore, add the dependency to ivy/ivy.xml:

<dependency org="mysql" name="mysql-connector-java" rev="5.1.13" conf="*->default"></dependency>

Change conf/gora.properties to setup the MySQL connection:

gora.sqlstore.jdbc.driver=com.mysql.jdbc.Driver
gora.sqlstore.jdbc.url=jdbc:mysql://localhost:3306/nutch?createDatabaseIfNotExist=true
gora.sqlstore.jdbc.user=alex
gora.sqlstore.jdbc.password=some_pass

You will notice MySQL is a lot faster than HSQL. It was at least 12x in my case with the default setups. For example injecting 50k took 6 min with HSQL instead of 30 sec with MySQL. You could make a similar comparison in Rails with SQLite and MySQL ...

HBase

Add the gora-hbase and zookeeper dependency in ivy/ivy.xml

<dependency org="org.apache.gora" name="gora-hbase" rev="0.1" conf="*->compile">
  <exclude org="com.sun.jdmk"/>
  <exclude org="com.sun.jmx"/>
  <exclude org="javax.jms"/>
 </dependency>
 <dependency org="org.apache.zookeeper" name="zookeeper" rev="3.3.2" conf="*->default">
  <exclude org="com.sun.jdmk"/>
  <exclude org="com.sun.jmx"/>
  <exclude org="javax.jms"/>
 </dependency>

After rebuilding Nutch, since a recent version (0.20.6 ?) is not available in the Maven repository, you will need to manually add hbase jar to the runtime/local/lib directory :

$ cp $HBASE_HOME/hbase-*.jar $NUTCH_HOME/runtime/local/lib

Create the $NUTCH_HOME/runtime/local/conf/gora-hbase-mapping.xml file as described in GORA_HBase wiki page. Overwrite storage.data.store.class property in runtime/local/conf/nutch-site.xml:

<property>
  <name>storage.data.store.class</name>
  <value>org.apache.gora.hbase.store.HBaseStore</value>
 </property>

Finally setup and Run HBase. See this blog entry as a quick guide.

Cassandra

Start Cassandra:

$ bin/cassandra -f

Run the injector job with the Gora setting to Cassandra store in nutch-site.xml.

<property>
  <name>storage.data.store.class</name>
  <value>org.apache.gora.cassandra.store.CassandraStore</value>
  <description>Default class for storing data</description>
</property>

Please place gora-cassandra-mapping.xml in your Nutch conf directory which is included in the classpath. This configuration defines how Avro fields are stored in Cassandra. This the content of gora-cassandra-mapping.xml file:

<gora-orm>
 <keyspace name="webpage" cluster="Test Cluster" host="localhost">
  <family name="p"/>
  <family name="f"/>
  <family name="sc" type="super"/>
 </keyspace>
 <class keyClass="java.lang.String" name="org.apache.nutch.storage.WebPage">
  <!-- fetch fields -->
  <field name="baseUrl" family="f" qualifier="bas"/>
  <field name="status" family="f" qualifier="st"/>
  <field name="prevFetchTime" family="f" qualifier="pts"/>
  <field name="fetchTime" family="f" qualifier="ts"/>
  <field name="fetchInterval" family="f" qualifier="fi"/>
  <field name="retriesSinceFetch" family="f" qualifier="rsf"/>
  <field name="reprUrl" family="f" qualifier="rpr"/>
  <field name="content" family="f" qualifier="cnt"/>
  <field name="contentType" family="f" qualifier="typ"/>
  <field name="modifiedTime" family="f" qualifier="mod"/>
  <!-- parse fields -->
  <field name="title" family="p" qualifier="t"/>
  <field name="text" family="p" qualifier="c"/>
  <field name="signature" family="p" qualifier="sig"/>
  <field name="prevSignature" family="p" qualifier="psig"/>
  <!-- score fields -->
  <field name="score" family="f" qualifier="s"/>
  <!-- super columns -->
  <field name="markers" family="sc" qualifier="mk"/>
  <field name="inlinks" family="sc" qualifier="il"/>
  <field name="outlinks" family="sc" qualifier="ol"/>
  <field name="metadata" family="sc" qualifier="mtdt"/>
  <field name="headers" family="sc" qualifier="h"/>
  <field name="parseStatus" family="sc" qualifier="pas"/>
  <field name="protocolStatus" family="sc" qualifier="prs"/>
 </class>
</gora-orm>

Check the data that has been initialized and gets populated.

$ bin/cassandra-cli --host localhost
[default@unknown] use webpage;
Authenticated to keyspace: webpage
[default@webpage] update column family p with key_validation_class=UTF8Type;
138c3060-b623-11e0-0000-242d50cf1fb7
Waiting for schema agreement...
... schemas agree across the cluster
[default@webpage] update column family f with key_validation_class=UTF8Type;
139de3a0-b623-11e0-0000-242d50cf1fb7
Waiting for schema agreement...
... schemas agree across the cluster
[default@webpage] update column family sc with key_validation_class=UTF8Type;
13b2f240-b623-11e0-0000-242d50cf1fb7
Waiting for schema agreement...
... schemas agree across the cluster
[default@webpage] list f;
Using default limit of 100
-------------------
RowKey: com.truveo.www:http/
=> (column=fi, value=2592000, timestamp=1311532210076000)
=> (column=s, value=1.0, timestamp=1311532210080000)
=> (column=ts, value=1311532203790, timestamp=1311532209796000)
-------------------
RowKey: com.blogspot.techvineyard:http/
=> (column=fi, value=2592000, timestamp=1311532210134000)
=> (column=s, value=1.0, timestamp=1311532210137000)
=> (column=ts, value=1311532203790, timestamp=1311532210131000)
-------------------
RowKey: org.apache.wiki:http/nutch/
=> (column=fi, value=2592000, timestamp=1311532210146000)
=> (column=s, value=1.0, timestamp=1311532210149000)
=> (column=ts, value=1311532203790, timestamp=1311532210144000)

3 Rows Returned.
[default@webpage]

JUnit Tests

Let's run a few unit tests to verify the setup.

Datastore

We want to make the GoraStorage test pass. First apply this patch to test your datastore setting and avoid crashing your old laptop because it has limited capacity.

Index: src/test/org/apache/nutch/storage/TestGoraStorage.java
===================================================================
--- src/test/org/apache/nutch/storage/TestGoraStorage.java      (revision 1053817)
+++ src/test/org/apache/nutch/storage/TestGoraStorage.java      (working copy)
@@ -1,22 +1,17 @@
 package org.apache.nutch.storage;

-import java.io.File;
-import java.util.ArrayList;
 import java.util.BitSet;
-import java.util.Iterator;
-import java.util.List;
 import java.util.Random;
-import java.util.Vector;
 import java.util.concurrent.atomic.AtomicInteger;

+import junit.framework.TestCase;
+
 import org.apache.avro.util.Utf8;
-import org.apache.hadoop.conf.Configuration;
-import org.apache.nutch.util.NutchConfiguration;
 import org.apache.gora.query.Result;
 import org.apache.gora.store.DataStore;
+import org.apache.hadoop.conf.Configuration;
+import org.apache.nutch.util.NutchConfiguration;

-import junit.framework.TestCase;
-
 public class TestGoraStorage extends TestCase {
   Configuration conf;

@@ -80,8 +75,8 @@
   private AtomicInteger threadCount = new AtomicInteger(0);

   public void testMultithread() throws Exception {
-    int COUNT = 1000;
-    int NUM = 100;
+    int COUNT = 50;
+    int NUM = 5;
     DataStore<String,WebPage> store;

     for (int i = 0; i < NUM; i++) {
@@ -113,115 +108,4 @@
     assertEquals(size, keys.cardinality());
   }

-  public void testMultiProcess() throws Exception {
-    int COUNT = 1000;
-    int NUM = 100;
-    DataStore<String,WebPage> store;
-    List<Process> procs = new ArrayList<Process>();
-
-    for (int i = 0; i < NUM; i++) {
-      Process p = launch(i, i * COUNT, COUNT);
-      procs.add(p);
-    }
-
-    while (procs.size() > 0) {
-      try {
-        Thread.sleep(5000);
-      } catch (Exception e) {};
-      Iterator<Process> it = procs.iterator();
-      while (it.hasNext()) {
-        Process p = it.next();
-        int code = 1;
-        try {
-          code = p.exitValue();
-          assertEquals(0, code);
-          it.remove();
-          p.destroy();
-        } catch (IllegalThreadStateException e) {
-          // not ready yet
-        }
-      }
-      System.out.println("* running " + procs.size() + "/" + NUM);
-    }
-    System.out.println("Verifying...");
-    store = StorageUtils.createDataStore(conf, String.class, WebPage.class);
-    Result<String,WebPage> res = store.execute(store.newQuery());
-    int size = COUNT * NUM;
-    BitSet keys = new BitSet(size);
-    while (res.next()) {
-      String key = res.getKey();
-      WebPage p = res.get();
-      assertEquals(key, p.getTitle().toString());
-      int pos = Integer.parseInt(key);
-      assertTrue(pos < size && pos >= 0);
-      if (keys.get(pos)) {
-        fail("key " + key + " already set!");
-      }
-      keys.set(pos);
-    }
-    if (size != keys.cardinality()) {
-      System.out.println("ERROR Missing keys:");
-      for (int i = 0; i < size; i++) {
-        if (keys.get(i)) continue;
-        System.out.println(" " + i);
-      }
-      fail("key count should be " + size + " but is " + keys.cardinality());
-    }
-  }
-
-  private Process launch(int id, int start, int count) throws Exception {
-    //  Build exec child jmv args.
-    Vector<String> vargs = new Vector<String>(8);
-    File jvm =                                  // use same jvm as parent
-      new File(new File(System.getProperty("java.home"), "bin"), "java");
-
-    vargs.add(jvm.toString());
-
-    // Add child (task) java-vm options.
-    // tmp dir
-    String prop = System.getProperty("java.io.tmpdir");
-    vargs.add("-Djava.io.tmpdir=" + prop);
-    // library path
-    prop = System.getProperty("java.library.path");
-    if (prop != null) {
-      vargs.add("-Djava.library.path=" + prop);
-    }
-    // working dir
-    prop = System.getProperty("user.dir");
-    vargs.add("-Duser.dir=" + prop);
-    // combat the stupid Xerces issue
-    vargs.add("-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl");
-    // prepare classpath
-    String sep = System.getProperty("path.separator");
-    StringBuffer classPath = new StringBuffer();
-    // start with same classpath as parent process
-    classPath.append(System.getProperty("java.class.path"));
-    //classPath.append(sep);
-    // Add classpath.
-    vargs.add("-classpath");
-    vargs.add(classPath.toString());
-
-    // append class name and args
-    vargs.add(TestGoraStorage.class.getName());
-    vargs.add(String.valueOf(id));
-    vargs.add(String.valueOf(start));
-    vargs.add(String.valueOf(count));
-    ProcessBuilder builder = new ProcessBuilder(vargs);
-    return builder.start();
-  }
-
-  public static void main(String[] args) throws Exception {
-    if (args.length < 3) {
-      System.err.println("Usage: TestGoraStore <id> <startKey> <numRecords>");
-      System.exit(-1);
-    }
-    TestGoraStorage test = new TestGoraStorage();
-    test.init();
-    int id = Integer.parseInt(args[0]);
-    int start = Integer.parseInt(args[1]);
-    int count = Integer.parseInt(args[2]);
-    Worker w = test.new Worker(id, start, count, true);
-    w.run();
-    System.exit(0);
-  }
 }
Index: src/test/org/apache/nutch/util/AbstractNutchTest.java
===================================================================
--- src/test/org/apache/nutch/util/AbstractNutchTest.java       (revision 1053817)
+++ src/test/org/apache/nutch/util/AbstractNutchTest.java       (working copy)
@@ -16,28 +16,14 @@
  */
 package org.apache.nutch.util;

-import java.io.IOException;
-import java.nio.ByteBuffer;
-import java.util.ArrayList;
-import java.util.List;
-
 import junit.framework.TestCase;

-import org.apache.avro.util.Utf8;
+import org.apache.gora.store.DataStore;
 import org.apache.hadoop.conf.Configuration;
 import org.apache.hadoop.fs.FileSystem;
 import org.apache.hadoop.fs.Path;
-import org.apache.nutch.crawl.URLWebPage;
-import org.apache.nutch.storage.Mark;
 import org.apache.nutch.storage.StorageUtils;
 import org.apache.nutch.storage.WebPage;
-import org.apache.nutch.util.TableUtil;
-import org.apache.gora.query.Query;
-import org.apache.gora.query.Result;
-import org.apache.gora.sql.store.SqlStore;
-import org.apache.gora.store.DataStore;
-import org.apache.gora.store.DataStoreFactory;
-import org.apache.gora.util.ByteUtils;

 /**
  * This class provides common routines for setup/teardown of an in-memory data
@@ -55,16 +41,12 @@
   public void setUp() throws Exception {
     super.setUp();
     conf = CrawlTestUtil.createConfiguration();
-    conf.set("storage.data.store.class", "org.gora.sql.store.SqlStore");
     fs = FileSystem.get(conf);
-    // using hsqldb in memory
-    DataStoreFactory.properties.setProperty("gora.sqlstore.jdbc.driver","org.hsqldb.jdbcDriver");
-    // use separate in-memory db-s for tests
-    DataStoreFactory.properties.setProperty("gora.sqlstore.jdbc.url","jdbc:hsqldb:mem:" + getClass().getName());
-    DataStoreFactory.properties.setProperty("gora.sqlstore.jdbc.user","sa");
-    DataStoreFactory.properties.setProperty("gora.sqlstore.jdbc.password","");
     webPageStore = StorageUtils.createWebStore(conf, String.class,
         WebPage.class);
+
+    // empty the datastore
+    webPageStore.deleteByQuery(webPageStore.newQuery());
   }

   @Override

Fetch

We can try to run the Fetcher test as well.

• Change the location of the static files that will be returned to the Nutch crawler by the Jetty server, from "build/test/data/fetch-test-site" to "src/testresources/fetch-test-site"
• Overwrite as well for testing purpose the plugin directory setting.
• Set http.agent.name and http.robots.agents properties.
• Limit the content length to the maximum for a blob column type. This is only required for MySQL.

Index: src/test/nutch-site.xml
===================================================================
--- src/test/nutch-site.xml     (revision 1053817)
+++ src/test/nutch-site.xml     (working copy)
@@ -22,4 +22,20 @@

<description>Default class for storing data</description>
 </property>

+       <property>
+         <name>plugin.folders</name>
+         <value>build/plugins</value>
+       </property>
+       <property>
+         <name>http.agent.name</name>
+         <value>NutchRobot</value>
+       </property>
+       <property>
+         <name>http.robots.agents</name>
+         <value>NutchRobot,*</value>
+       </property>
+       <property>
+         <name>http.content.limit</name>
+         <value>65535</value>
+       </property>
 </configuration>
Index: src/test/org/apache/nutch/fetcher/TestFetcher.java
===================================================================
--- src/test/org/apache/nutch/fetcher/TestFetcher.java  (revision 1050697)
+++ src/test/org/apache/nutch/fetcher/TestFetcher.java  (working copy)
@@ -50,7 +50,7 @@
   public void setUp() throws Exception{
     super.setUp();
     urlPath = new Path(testdir, "urls");
-    server = CrawlTestUtil.getServer(conf.getInt("content.server.port",50000), "build/test/data/fetch-test-site");
+    server = CrawlTestUtil.getServer(conf.getInt("content.server.port",50000), "src/testresources/fetch-test-site");
     server.start();
   }

Now right click on the org.apache.nutch.fetcher.TestFetcher class located in the src/test source directory, then "Run As" > "JUnit Test".

Nutch Commands

Several commands are available to maintain and index your crawl. Here are the possible options from the Bash script:

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch
Usage: nutch [-core] COMMAND
where COMMAND is one of:
 inject inject new urls into the database
 generate generate new segments to fetch from crawl db
 fetch fetch URLs marked during generate
 parse parse URLs marked during fetch
 updatedb update web table after parsing
 readdb read/dump records from page database
 solrindex run the solr indexer on parsed segments and linkdb
 solrdedup remove duplicates from solr
 plugin load a plugin and run one of its classes main()
 or
 CLASSNAME run the class named CLASSNAME
Most commands print help when invoked w/o parameters.

Expert: -core option is for developers only. It avoids building the job jar,
 instead it simply includes classes compiled with ant compile-core.
 NOTE: this works only for jobs executed in 'local' mod

Running Nutch classes from Eclipse

You can either run a command with the Bash script or execute a Nutch class directly from Eclipse. The latter is easier for development since you do not need to build the whole project each time you change something. When a Nutch class is executed, it first loads the configuration by looking in the classpath for a nutch-site.xml file that overwrites nutch-default.xml. Depending on the order of the "src/test" and "conf" source directories in your Eclipse build path, only one nutch-site.xml file will be loaded to the classpath. In my case, it was the one that is located in "src/test". If I edit the one in "conf", I see the warning

The resource is a duplicate of src/test/nutch-default.xml and was not copied to the output folder.

which indicates it will be ignored. So you want to edit the one that is activated.

• Apply the modifications to src/test/nutch-site.xml (or conf/nutch-site.xml, depending on your classpath order setting) that are given in the Fetch Test section from above.

crawl / org.apache.nutch.crawl.Crawler

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch crawl
Usage: Crawl (<seedDir> | -continue) [-solr <solrURL>] [-threads n] [-depth i] [-topN N]

Right click on org.apache.nutch.crawl.Crawler in src/java source directory. Then "Run As" > "Java Application"

1. The first argument called "seedDir" is the path to a directory containing lists of seed urls. They will be injected to the database. They define a forest of pages that will be visited by the crawler during the first iteration of the graph exploration. Then the crawler will expand the graph by adding neighbours to these pages when extracting new urls out of the page content. These new pages should then be visited in the second iteration.

2. The -continue parameter instead resumes the crawl without injecting any seeds.

3. -solr defines the solr server used to index the documents

4. -threads defines the number of threads spawned to fetch several pages simultaneously.

5. -depth defines the number of iterations in the graph exploration, before the traversal gets pruned.

6. -topN limits the number of urls that get downloaded in one iteration.


Let's create some input to the crawl command. This is the content of a seeds/urls file that we can use for the demo:

http://techvineyard.blogspot.com/
http://www.truveo.com/
http://wiki.apache.org/nutch/

I used MySQL as a datastore. Let's clear it if the webpage table exists before running the crawl command.

$ mysql -hlocalhost -ualex -psome_pass nutch
mysql> delete from webpage;

From the Eclipse menu:

Run > Run Configurations ...

Click Run. You can compare your output with my logs here. Then check the content of the MySQL table:

mysql> describe webpage;
+-------------------+----------------+------+-----+---------+-------+
| Field             | Type           | Null | Key | Default | Extra |
+-------------------+----------------+------+-----+---------+-------+
| id                | varchar(512)   | NO   | PRI | NULL    |       |
| headers           | blob           | YES  |     | NULL    |       |
| text              | varchar(32000) | YES  |     | NULL    |       |
| status            | int(11)        | YES  |     | NULL    |       |
| markers           | blob           | YES  |     | NULL    |       |
| parseStatus       | blob           | YES  |     | NULL    |       |
| modifiedTime      | bigint(20)     | YES  |     | NULL    |       |
| score             | float          | YES  |     | NULL    |       |
| typ               | varchar(32)    | YES  |     | NULL    |       |
| baseUrl           | varchar(512)   | YES  |     | NULL    |       |
| content           | blob           | YES  |     | NULL    |       |
| title             | varchar(512)   | YES  |     | NULL    |       |
| reprUrl           | varchar(512)   | YES  |     | NULL    |       |
| fetchInterval     | int(11)        | YES  |     | NULL    |       |
| prevFetchTime     | bigint(20)     | YES  |     | NULL    |       |
| inlinks           | blob           | YES  |     | NULL    |       |
| prevSignature     | blob           | YES  |     | NULL    |       |
| outlinks          | blob           | YES  |     | NULL    |       |
| fetchTime         | bigint(20)     | YES  |     | NULL    |       |
| retriesSinceFetch | int(11)        | YES  |     | NULL    |       |
| protocolStatus    | blob           | YES  |     | NULL    |       |
| signature         | blob           | YES  |     | NULL    |       |
| metadata          | blob           | YES  |     | NULL    |       |
+-------------------+----------------+------+-----+---------+-------+
23 rows in set (0.14 sec)

mysql> select count(*) from webpage;
+----------+
| count(*) |
+----------+
|      151 |
+----------+
1 row in set (0.00 sec)

mysql> select id, markers from webpage where content is not null;
+---------------------------------+------------------------------------------+
| id                              | markers                                  |
+---------------------------------+------------------------------------------+
| org.apache.wiki:http/nutch/     | _injmrk_y_updmrk_*1294943864-1806760603  |
| com.blogspot.techvineyard:http/ | _injmrk_y_updmrk_*1294943864-1806760603  |
| com.truveo.www:http/            | _injmrk_y_updmrk_*1294943864-1806760603  |
+---------------------------------+------------------------------------------+
3 rows in set (0.00 sec)

readdb / org.apache.nutch.crawl.WebTableReader

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch readdb
Usage: WebTableReader (-stats | -url [url] | -dump <out_dir> [-regex regex]) [-crawlId <id>] [-content] [-headers] [-links] [-text]
        -crawlId <id>    the id to prefix the schemas to operate on, (default: storage.crawl.id)
        -stats [-sort]  print overall statistics to System.out
                [-sort] list status sorted by host
        -url <url>      print information on <url> to System.out
        -dump <out_dir> [-regex regex]  dump the webtable to a text file in <out_dir>
                -content        dump also raw content
                -headers        dump protocol headers
                -links  dump links
                -text   dump extracted text
                [-regex]        filter on the URL of the webtable entry

WebTableReader class scans the entire database via a Hadoop job that outputs all the fields.

inject / org.apache.nutch.crawl.InjectorJob

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch inject
Usage: InjectorJob <url_dir> [-crawlId <id>]

First, we need to initialize the crawl db. The "url_dir" argument to the inject command is a directory containing flat files of lists of urls, used as "seeds".

generate / org.apache.nutch.crawl.GeneratorJob

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch generate
GeneratorJob: Selecting best-scoring urls due for fetch.
GeneratorJob: starting
GeneratorJob: filtering: true
GeneratorJob: done
GeneratorJob: generated batch id: 1294943864-1806760603

This steps generates a batch-id containing selected urls to be fetched.

fetch / org.apache.nutch.fetcher.FetcherJob

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch fetch
Usage: FetcherJob (<batchId> | -all) [-crawlId <id>] [-threads N] [-parse] [-resume] [-numTasks N]
        batchId crawl identifier returned by Generator, or -all for all generated batchId-s
        -crawlId <id>    the id to prefix the schemas to operate on, (default: storage.crawl.id)
        -threads N      number of fetching threads per task
        -parse  if specified then fetcher will immediately parse fetched content
        -resume resume interrupted job
        -numTasks N     if N > 0 then use this many reduce tasks for fetching (default: mapred.map.tasks)

parse / org.apache.nutch.parse.ParserJob

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch parse
Usage: ParserJob (<batchId> | -all) [-crawlId <id>] [-resume] [-force]
        batchId symbolic batch ID created by Generator
        -crawlId <id>    the id to prefix the schemas to operate on, (default: storage.crawl.id)
        -all    consider pages from all crawl jobs
-resume resume a previous incomplete job
-force  force re-parsing even if a page is already parsed

Once we have a local copy the web pages, we need to parse them to extract keywords and links the web page points to. This parsing task is delegated to Tika.

updatedb / org.apache.nutch.crawl.DbUpdaterJob

~/java/workspace/Nutch2.0/runtime/local$ bin/nutch updatedb

solrindex / org.apache.nutch.indexer.solr.SolrIndexerJob

The indexing task is now delegated to Solr, which is a server using Lucene indexes that will make the crawled documents searchable by indexing the data posted via HTTP. I ran into a few caveats before making it work. This is the suggested patch.

• Avoid multiple values for id field.
• Allow multiple values for tag field. Add tld (Top Level Domain) field.
• Get the content-type from WebPage object's member. Otherwise, you will see NullPointerExceptions.
• Compare strings with equalsTo. That's pretty random, but it avoids having some suprises.

Index: conf/solrindex-mapping.xml
===================================================================
--- conf/solrindex-mapping.xml  (revision 1053817)
+++ conf/solrindex-mapping.xml  (working copy)
@@ -39,8 +39,7 @@
                <field dest="boost" source="boost"/>
                <field dest="digest" source="digest"/>
                <field dest="tstamp" source="tstamp"/>
-               <field dest="id" source="url"/>
-               <copyField source="url" dest="url"/>
+               <field dest="url" source="url"/>
        </fields>
        <uniqueKey>id</uniqueKey>
 </mapping>
Index: conf/schema.xml
===================================================================
--- conf/schema.xml     (revision 1053817)
+++ conf/schema.xml     (working copy)
@@ -95,12 +95,15 @@

         <!-- fields for feed plugin -->
         <field name="author" type="string" stored="true" indexed="true"/>
-        <field name="tag" type="string" stored="true" indexed="true"/>
+        <field name="tag" type="string" stored="true" indexed="true" multiValued="true"/>
         <field name="feed" type="string" stored="true" indexed="true"/>
         <field name="publishedDate" type="string" stored="true"
             indexed="true"/>
         <field name="updatedDate" type="string" stored="true"
             indexed="true"/>
+
+        <field name="tld" type="string" stored="false" indexed="false"/>
+
     </fields>
     <uniqueKey>id</uniqueKey>
     <defaultSearchField>content</defaultSearchField>
Index: src/plugin/index-more/src/java/org/apache/nutch/indexer/more/MoreIndexingFilter.java
===================================================================
--- src/plugin/index-more/src/java/org/apache/nutch/indexer/more/MoreIndexingFilter.java        (revision 1053817)
+++ src/plugin/index-more/src/java/org/apache/nutch/indexer/more/MoreIndexingFilter.java        (working copy)
@@ -172,7 +172,7 @@
    */
   private NutchDocument addType(NutchDocument doc, WebPage page, String url) {
     MimeType mimeType = null;
-    Utf8 contentType = page.getFromHeaders(new Utf8(HttpHeaders.CONTENT_TYPE));
+    Utf8 contentType = page.getContentType();
     if (contentType == null) {
       // Note by Jerome Charron on 20050415:
       // Content Type not solved by a previous plugin
Index: src/java/org/apache/nutch/indexer/solr/SolrWriter.java
===================================================================
--- src/java/org/apache/nutch/indexer/solr/SolrWriter.java      (revision 1053817)
+++ src/java/org/apache/nutch/indexer/solr/SolrWriter.java      (working copy)
@@ -56,7 +56,7 @@
       for (final String val : e.getValue()) {
         inputDoc.addField(solrMapping.mapKey(e.getKey()), val);
         String sCopy = solrMapping.mapCopyKey(e.getKey());
-        if (sCopy != e.getKey()) {
+        if (! sCopy.equals(e.getKey())) {
                inputDoc.addField(sCopy, val);
         }
       }

Download Solr. To setup the Solr server, copy the example directory from the Solr distribution and the patched schema.xml configuration file to solr/conf of the Solr app.

cp -r $SOLR_HOME/example solrapp
 cp $NUTCH_HOME/conf/schema.xml solrapp/solr/conf/
 cd solrapp
 java -jar start.jar

This starts the Solr server. Now let's index a few documents, by adding as parameter to SolrIndexerJob class the batch id showing up in the markers column.

Here are some excerpts of the logs from the Jetty server to make sure the documents were properly sent:

13-Jan-2011 19:50:47 org.apache.solr.update.processor.LogUpdateProcessor finish
INFO: {add=[com.truveo.www:http/, org.apache.wiki:http/nutch/, com.blogspot.techvineyard:http/]} 0 206
13-Jan-2011 19:50:47 org.apache.solr.core.SolrCore execute
INFO: [] webapp=/solr path=/update params={wt=javabin&version=1} status=0 QTime=206
13-Jan-2011 19:50:47 org.apache.solr.update.DirectUpdateHandler2 commit
INFO: start commit(optimize=false,waitFlush=true,waitSearcher=true,expungeDeletes=false)
13-Jan-2011 19:50:47 org.apache.solr.core.SolrDeletionPolicy onCommit
INFO: SolrDeletionPolicy.onCommit: commits:num=2
        commit{dir=/home/alex/java/perso/nutch/solrapp/solr/data/index,segFN=segments_1,version=1294944630023,generation=1,filenames=[segments_1]
        commit{dir=/home/alex/java/perso/nutch/solrapp/solr/data/index,segFN=segments_2,version=1294944630024,generation=2,filenames=[_0.nrm, _0.tis, _0.fnm, _0.tii, _0.frq, segments_2, _0.fdx, _0.prx, _0.fdt]
13-Jan-2011 19:50:47 org.apache.solr.core.SolrDeletionPolicy updateCommits
INFO: newest commit = 1294944630024

You can now do a search via the api:

$ curl "http://localhost:8983/solr/select/?q=video&indent=on"
<?xml version="1.0" encoding="UTF-8"?>
<response>

<lst name="responseHeader">
 <int name="status">0</int>
 <int name="QTime">0</int>
 <lst name="params">
  <str name="indent">on</str>
  <str name="q">video</str>
 </lst>
</lst>
<result name="response" numFound="2" start="0">
 <doc>
  <arr name="anchor"><str>Logout</str></arr>
  <float name="boost">1.03571</float>
  <str name="date">20110212</str>
  <str name="digest">5d62587216b50ed7e52987b09dcb9925</str>
  <str name="id">com.truveo.www:http/</str>
  <str name="lang">unknown</str>
  <arr name="tag"><str/></arr>
  <str name="title">Truveo Video Search</str>
  <long name="tstamp">2011-02-12T18:37:53.031Z</long>
  <arr name="type"><str>text/html</str><str>text</str><str>html</str></arr>
  <str name="url">http://www.truveo.com/</str>
 </doc>
 <doc>
  <arr name="anchor"><str>Comments</str></arr>
  <float name="boost">1.00971</float>
  <str name="date">20110212</str>
  <str name="digest">59edefd6f4711895c2127d45b569d8c9</str>
  <str name="id">org.apache.wiki:http/nutch/</str>
  <str name="lang">en</str>
  <arr name="subcollection"><str>nutch</str></arr>
  <arr name="tag"><str/></arr>
  <str name="title">FrontPage - Nutch Wiki</str>
  <long name="tstamp">2011-02-12T18:37:53.863Z</long>
  <arr name="type"><str>text/html</str><str>text</str><str>html</str></arr>
  <str name="url">http://wiki.apache.org/nutch/</str>
 </doc>
</result>
</response>

Crawl Script

To automate the crawl process, we might want to use a Bash script that runs the suite of Nutch commands, then add it as a cron job. Don't forget to initialize first the crawl db with the inject command. We run several iterations of the the generate/fetch/parse/update cycle with the for loop. We limit the number of urls that will get fetched in one iteration by specifying a -topN argument in the generate command.

#!/bin/bash

# Nutch crawl

export NUTCH_HOME=~/java/workspace/Nutch2.0/runtime/local

# depth in the web exploration
n=1
# number of selected urls for fetching
maxUrls=50000
# solr server
solrUrl=http://localhost:8983

for (( i = 1 ; i <= $n ; i++ ))
do

log=$NUTCH_HOME/logs/log

# Generate
$NUTCH_HOME/bin/nutch generate -topN $maxUrls > $log

batchId=`sed -n 's|.*batch id: \(.*\)|\1|p' < $log`

# rename log file by appending the batch id
log2=$log$batchId
mv $log $log2
log=$log2

# Fetch
$NUTCH_HOME/bin/nutch fetch $batchId >> $log

# Parse
$NUTCH_HOME/bin/nutch parse $batchId >> $log

# Update
$NUTCH_HOME/bin/nutch updatedb >> $log

# Index
$NUTCH_HOME/bin/nutch solrindex $solrUrl $batchId >> $log

done

Conclusion

I managed to fetch in one run 50k urls with these minor changes. With the default values in conf/nutch-default.xml and MySQL as datastore, these are the logs timestamps when running the initialization and one iteration of generate/fetch/update cycle:

2010-12-13 07:19:26,089 INFO  crawl.InjectorJob - InjectorJob: starting
2010-12-13 07:20:00,077 INFO  crawl.InjectorJob - InjectorJob: finished
2010-12-13 07:20:00,715 INFO  crawl.GeneratorJob - GeneratorJob: starting
2010-12-13 07:20:34,304 INFO  crawl.GeneratorJob - GeneratorJob: done
2010-12-13 07:20:35,041 INFO  fetcher.FetcherJob - FetcherJob: starting
2010-12-13 11:04:00,933 INFO  fetcher.FetcherJob - FetcherJob: done
2010-12-15 01:38:44,262 INFO  crawl.DbUpdaterJob - DbUpdaterJob: starting
2010-12-15 02:15:15,503 INFO  crawl.DbUpdaterJob - DbUpdaterJob: done


The next step is comparing with a setup backed by a HBase datastore. I tried once but got a memory error which left my HBase server instance unresponsive. See the description of the problem.

Please don't hesitate to comment and share your own feedback, difficulties and results.
